90-120mm Metal Shock Absorber for Axial SCX10 D90 TRX4

RCBENECO RC Car Metal Shock Absorber Oil Damper 90/100/110/120mm for 1/10 RC Crawler Car Axial SCX10 D90 TRX4 Wraith Parts

Package Included:(Do not with oil)
1/4pcs Shock Absorber

Description:
Alloy Metal Shock Absorber For Axial SCX10,SCX10II AX90046,Wraith,D90,TRX-4,CC01,JEEP etc.
Piggyback reservoirs with externally adjustable rebound compression damping.
Designed for scale and trail trucks.
CNC machined delrin shock spring adjust nut.
CNC machined aluminum parts for the durability.
CNC machined aluminum shock cartridge.
Heavy-duty 3.5mm shocks shaft for all types of competition.
Dual O-Ring sealed into the shock cartridge for preventing leak of oil.
Threaded spring adjusters.

Specification:
Color: Black+Red(As show as picture)
Shock spring diamenter: 14mm
Shock shaft diameter: 3.5mm
Length from the edge to the edge of the bushing for the bolt: 7mm
Outer diameter of the bolt: 4mm
Length
Uncompressed(mounting center hole to hole):

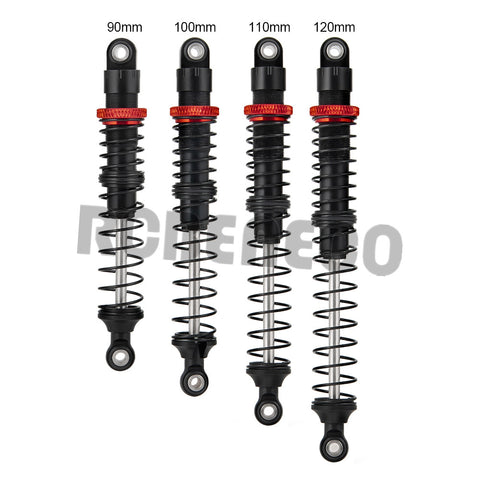

90mm/100mm/110mm/120mm
Compression(mounting center hole to hole):
90mm to 62mm
100mm to 67mm
110mm to 72mm
120mm to 77mm

Notice:Pls allow 1-3mm error due to the manual measurement.
