Metal Shock Absorber 90-120mm for Axial SCX10 CC01 D90 TRX-4 Wraith

RCBENECO Metal Shock Absorber Damper 90mm 100mm 110mm 120mm for 1:10 RC Crawler Car Axial SCX10 CC01 D90 TRX-4 Wraith

Package Included:

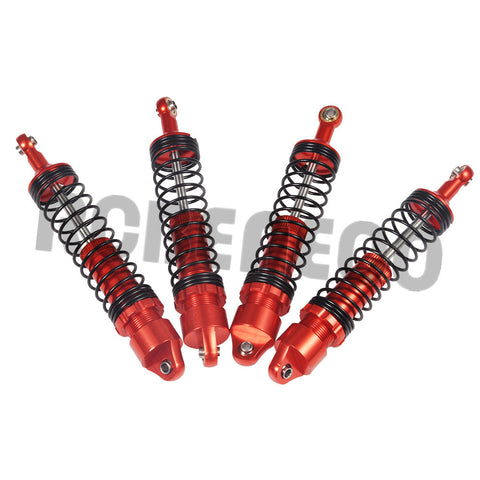

1/4pcs shock absorbers

Product Description:
Designed for scale and trail trucks.
Anodized aluminum parts.
CNC machined delrin shock spring adjust nut.
CNC machined aluminum parts for the durability.
CNC machined aluminum shock cartridge.
3.5mm thick shock shafts.
Dual O-Ring sealed into the shock cartridge for preventing leak of oil.
For 1/10 RC Crawlers, like Axial Wraith,SCX10,CC01,D90,TRX-4,etc.

Specification:
Material: Aluminum Alloy
Color: Red
Length (mounting hole to hole): 90mm/100mm/110mm/120mm
Shock body diameter: 11mm
Shock spring diamenter: 18mm
Shock shaft diameter: 3.5mm
Length from the edge to the edge of the bushing for the bolt: 7mm
Outer diameter of the bolt: 4mm
Length after compression：
90mm→68.5mm
100mm→73.5mm
110mm→78.5mm
120mm→83.5mm

Note:
For safety shipping the shock absorber coming without oil.
Pls allow 1-3mm error due to the manual measurement.
