Rearview Lens with LED Lights for Axial SCX10

RCBENECO RC Car Rearview Lens with LED Lights for 1/10 Axial SCX10 RC Crawler Car Rearview Mirror Simulated Decorations Parts

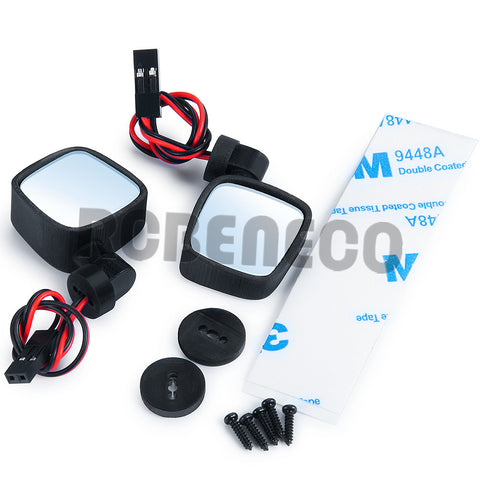

Package List:
1Pair * Rearview Mirror with LED Lights

Product Description:
Made of high quality material.
Increase the authenticity of your RC car.
Make your RC car more cool and attractive.
Great choice for your RC Car decoration.

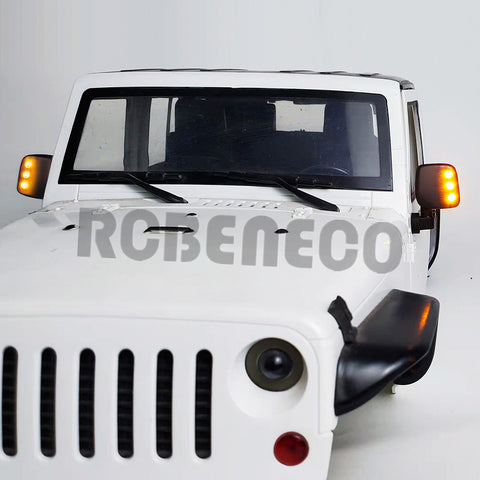

Come with LED Lights, yellow light.
Suit for 1/10 Axial SCX10 RC Crawler Car.

Specification:
Item Name: Rearview Mirror
LED Light Color: Yellow
LED Light Voltage: 4.8V~6V
Quantity: 1Pair
Weight: 15g

Installation Steps:

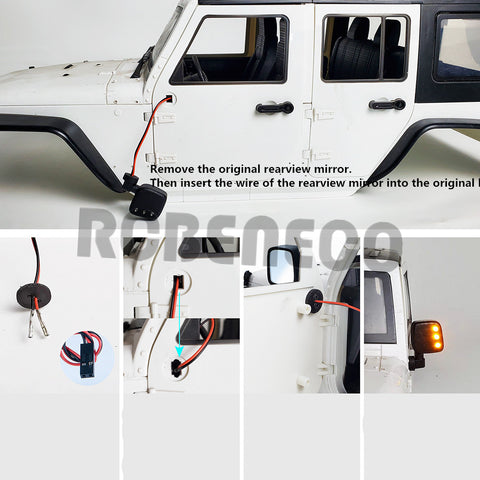

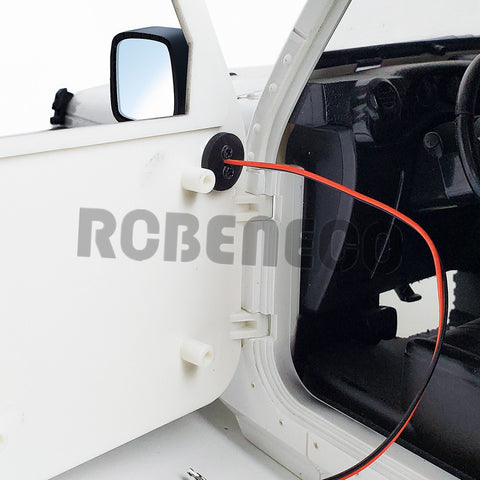

1. Remove the original rearview mirror. Then insert the wire of the rearview mirror into the original hole.

2. Remove the plastic shell on the terminal wire with a blade, and then insert the terminal wire into the hole in the middle of the two round fittings. Pay attention to the direction of the round fittings, with the concave surface facing the outside of the car door and the flat surface facing the inside of the car.

3. In the above steps, after threading the thread, cut the hole on the door. As shown in the figure, cut off about 3mm from top to bottom. The picture above is the original factory appearance, and the picture below is the cropped appearance.

4. After cutting, install the screws. Do not install the screws too tightly. Because it is a 3D printing material, it can't be subjected to too much force and won't loosen. Then replace the original plastic terminal housing.

5. Finally, turn on the 4.8V~6V power supply, or connect to the reserved channel of other lamp groups. In the process of routing, it may be necessary to cut the interior trim panel. This needs to be tailored according to the individual's own situation.
